What is SG-WIND?
We want to eliminate gas burns, short circuits and voids!
We want to extend the maintenance cycle of our moulds!
We sell mould insert components that can meet these demands.
～SG-WIND～
Features of SG-WIND

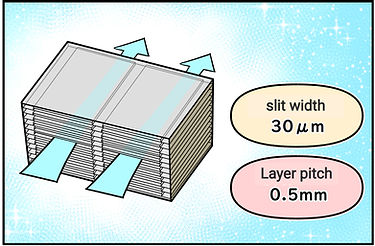

This is a nested component featuring multiple layers of slits.
Compared to competing products, its larger open area enables more efficient venting.
Benefits of Introducing SG-WIND
★Quality Improvement (Reduced Defect Rate)
・Minimises gas vent blockages within cavities
Prevents gas burn, shorting, and void defects
★Enhanced Productivity
・Eliminates causes of short production runs by reducing defect rates
・Significantly reduces mould maintenance frequency
SG-WIND line-up
SG-WIND is available in four shapes: block, pin, ring, and cylindrical.
Please select the appropriate shape according to your product design and mould configuration.
block type
Recommended for flat surfaces or when venting over a wide area.
👉Case Studies
pin type
It can be used as a replacement for the ejector pin.
It is recommended when you wish to try it out easily at first. 👉Case Studies
SG-WIND
ring type
Recommended for products with a pipe shape when venting is required.
👉Case Studies
cylinder type
Recommended for venting gas
at runners or pin gates.
The specifications for SG-WIND can be downloaded here
Other materials can be downloaded here
SG-POROUS
～SG-POROUS～
Features of SG-POROUS
This is a mould insert featuring a porous structure formed by 3D printing.
It offers a wider range of applications than SG-WIND and can also be machined, making it highly versatile.
Benefits of Implementing SG-WIND
★Quality Improvement (Reduced Defect Rate)
・Minimises gas vent blockages within cavities
Prevents gas burn, shorting, and void defects
★Enhanced Productivity
・Eliminates causes of short production runs by reducing defect rates
・Significantly reduces mould maintenance frequency
SG-POROUS line-up
The basic shape of SG-POROUS is as shown below, but it can be cut to size as required.
Additionally, custom moulding to match your product shape is possible; please enquire.
SG-POROUSの 👉Case Study
Examples of SG-POROUS processing
SG-POROUS can also be moulded in combination with 3D water pipes.
It achieves both high degassing performance and high cooling performance in a single nested component!
The specifications for SG-POROUS can be downloaded here
Other materials can be downloaded here
～Order・Quotation～
Payment, Delivery and Postage
Payment: Payment shall be accepted via direct debit.
※Bank transfer details will be provided after your order is placed.
Shipping: Delivery within Japan is free of charge.
Prices listed in the article apply to customers within Japan.
Regarding Orders and Quotation Requests
For orders and quotation requests,
please contact us via the email address below.
★Sanko Gosei Technical Centre★
Address: 4185 Koreyasu, Nanto City, Toyama Prefecture
TEL： 0763-62-3600
mail：sg.wind@sankogosei.co.jp
inquiry
Please contact us if you are interested.
If you need to manufacture and sell resin products, please leave it to Sanko Gosei!
